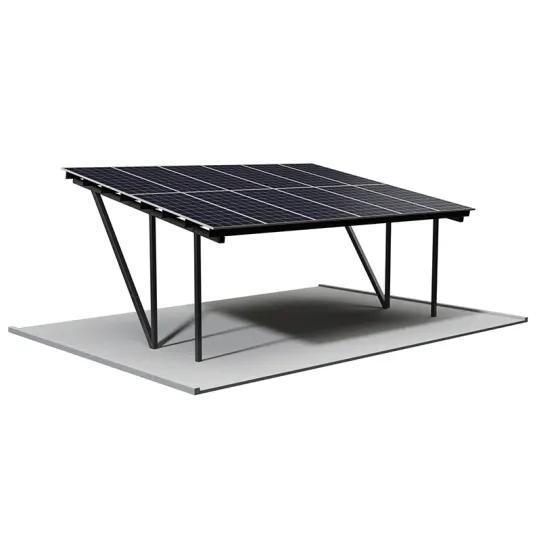

Carport Mounting System
Solar carport mounting system include rails, rail splice kits, L-feets and other accessories
Lightweight structure, using 6000 series aluminum alloy material anodized surface treatment process, convenient transportation, high waterproof performance, strong corrosion resistance.
Product Parameters
Brand | HH |
Application | Carport |

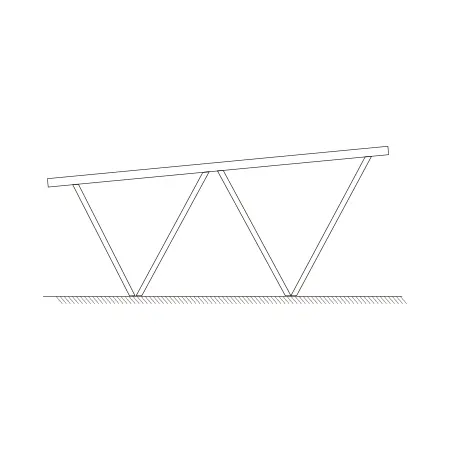

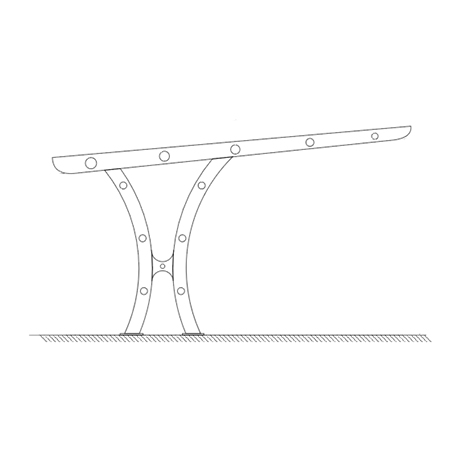

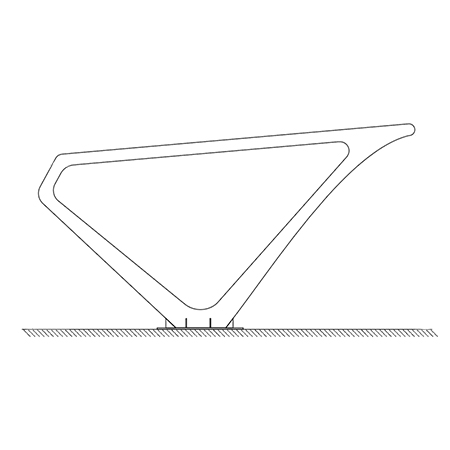

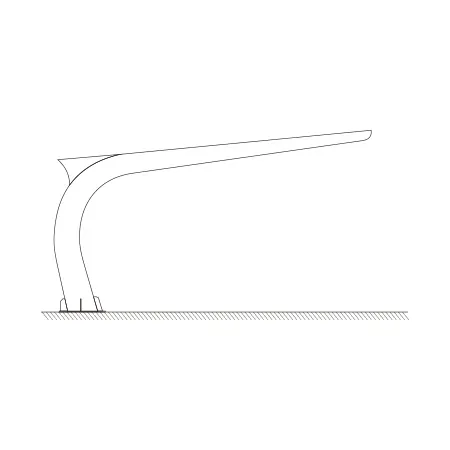

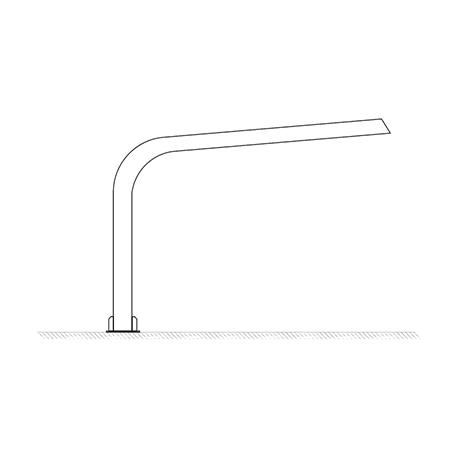

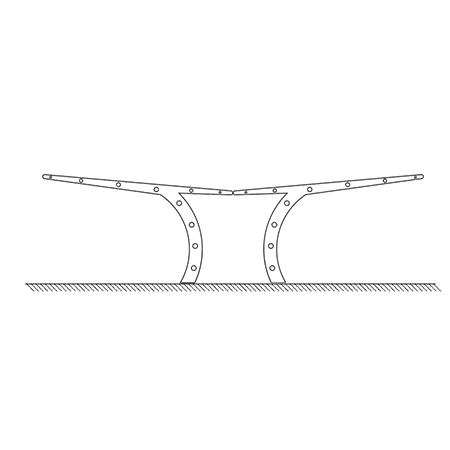

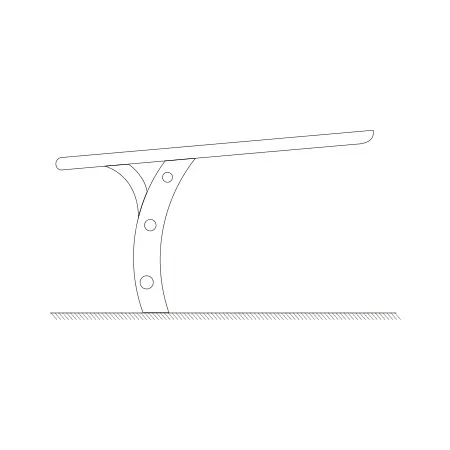

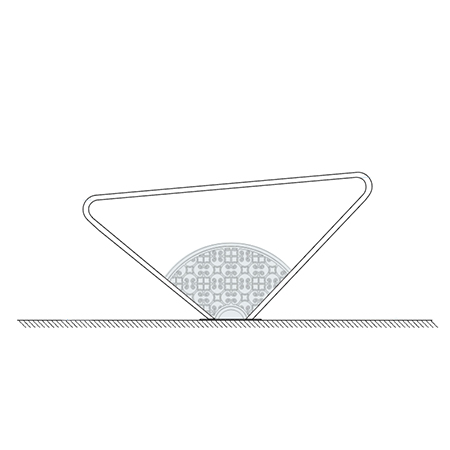

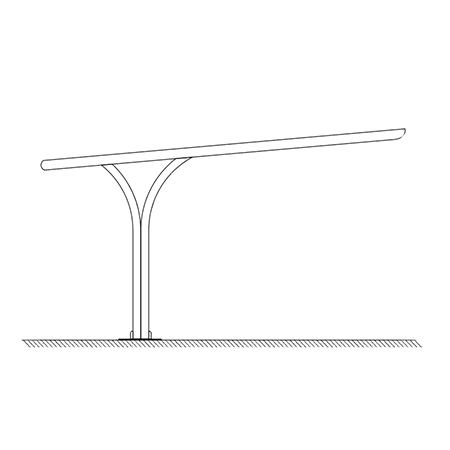

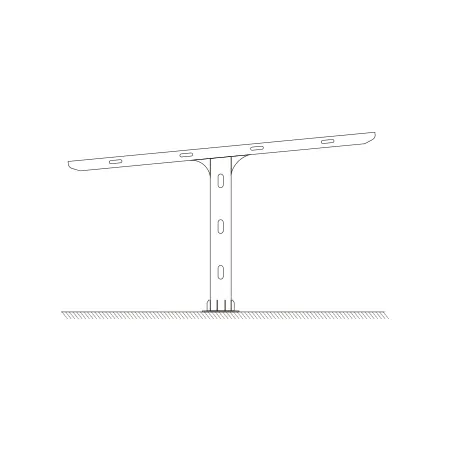

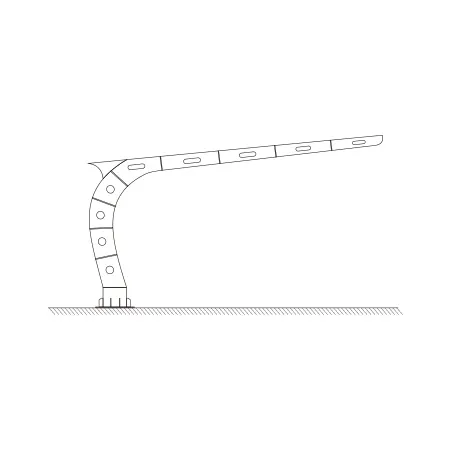

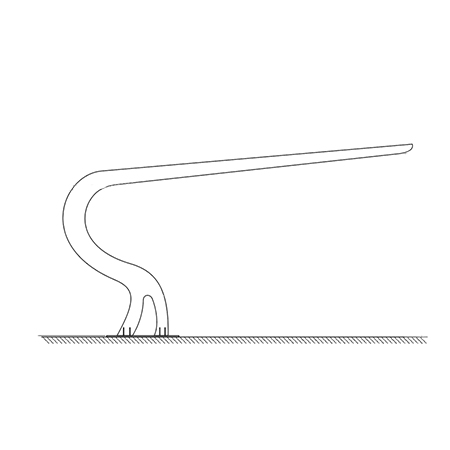

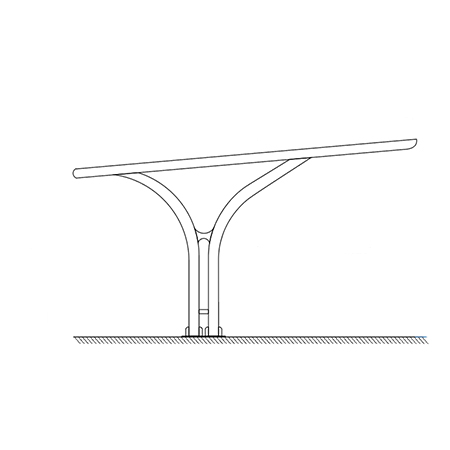

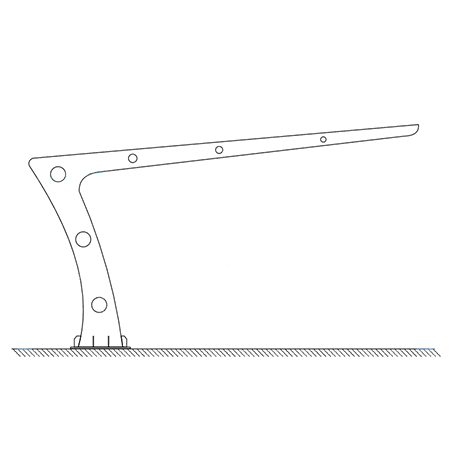

Type | “N”shape,”W”shape,”Y”shape,”T”shape ,”L”shape Waterproof or Non-waterproof, custom |
Material | Aluminum 6005-T5/Carbon steel Q235B |
Warranty | 10 years |
Service Life | 25 years |
Certification | CE/SGS/ISO9001/ISO14001/ISO45001/OHSAS18001 |
Wind load | 60m/s |
Snow load | 1.4kn/㎡ |
material list
Pole 1
Pole 2
Beam (L=5900)
Pole connector
Rail (L=6100)
Rail clip
Waterproof rail 1
Clamp support
End clamp
Waterproof rail 2
Cover plate (L=3417)
Middle clamp
T-bolt M8*25
T-bolt M8*25
Hexagon socket head cap bolt M8*35
Hexagon head cap bolt M16*150
Threaded rod M10*200
Tapping screw ST6.3*19
Cap
Rubber strip (L=1134)
Rubber mat (L=500)
DESCRIPTION
Lightweight, easy transportation and installation, safe construction. Maximum pre-assembly, saving construction time and labor cost.
Using aluminum alloy 6000 series with anodized surface treatment, high waterproof performance, strong corrosion resistance and salt tolerance.
Environmental protection, suitable for variety of geological conditions. It is durable and recyclable. Effectively combine power generation and lighting equipment, and maximize the release of energy.
DESCRIPTION

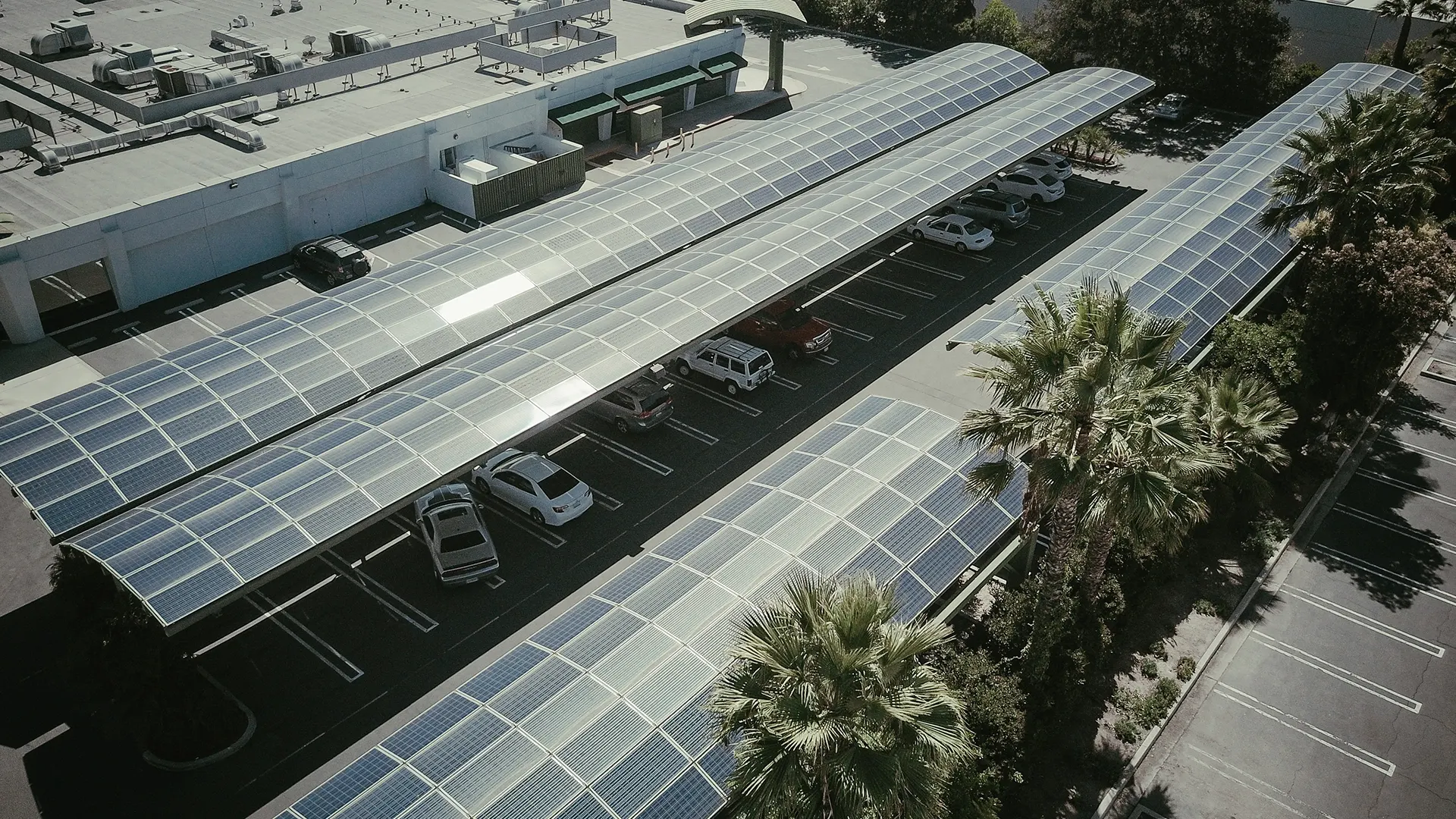

Solar carport serves as a charging station for electrical vehicle while develop a renewable energy. It can be applied for both commercial and residential areas.
Use cement ground or ground piles as the foundation of solar carport to adjust the angle of solar brackets and protect the soil environment.

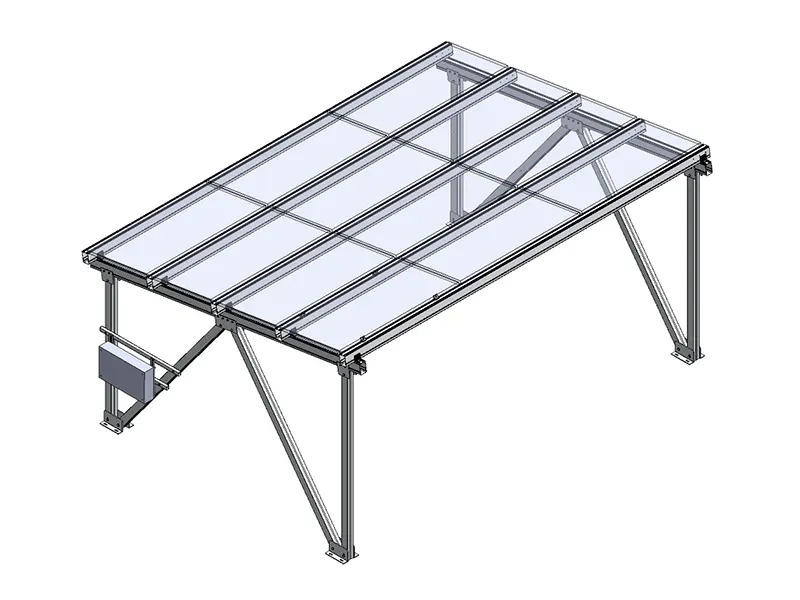

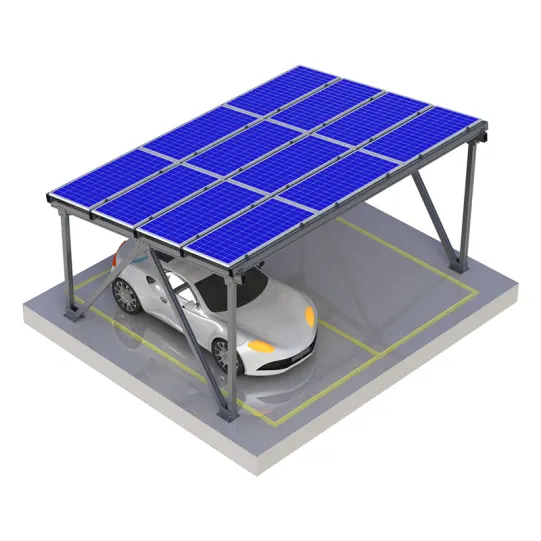

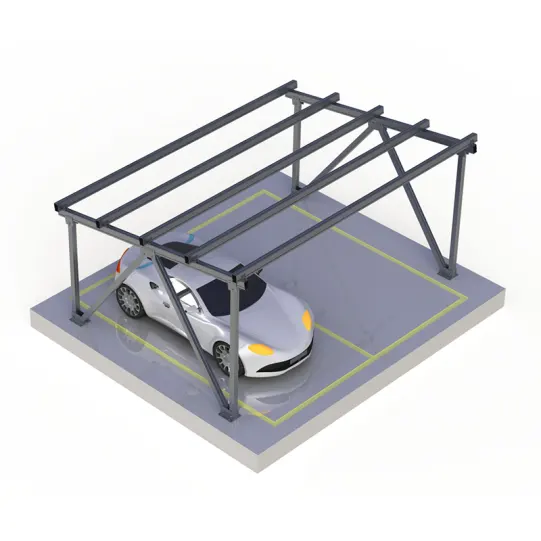

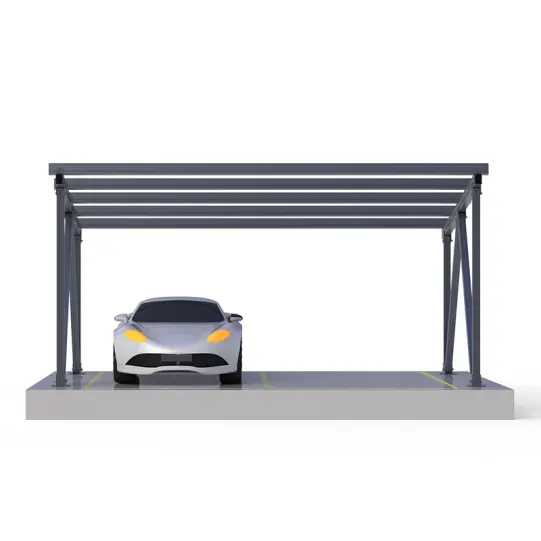

Waterproof solar carport is added with wind deflectors,waterproof sheet and water channel to protect cars from damaging of sunshine, wind, rain and snow.
